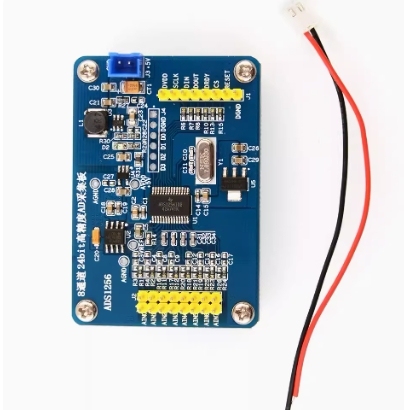

1. Power input terminal, with the upper end being the ground wire and the lower end being+5V.
2. LT3461 power chip with high ripple noise suppression ratio.
3. Power indicator light.
4. LP2985, LDO can effectively filter out low-frequency noise and generate a very pure+5V, providing power for ASD1256.
ADR431BRZ, B series is a high-precision benchmark. Reference chip, generating a high-precision 2.500000 V reference
6. Benchmark test holes.
7. Simulated input terminal, there are a total of eight input ports in AIN0-AIN7, which can be used as 8 independent single ended inputs or as 4 sets of differential inputs. AIN0 and AIN1 are grouped together, and AIN2 and AIN3, AIN4 and AIN5, AIN6 and AIN7 are grouped together
8. input port
9. Input resistance and attenuation resistance. The attenuation resistor is not soldered by default.
10. ADS1256 main control chip.
11. AMS117-3.3v, providing digital voltage for ADS1256.
12. NSK brand crystal oscillator, 7.68MHz
13. Communication interface with MCU.
