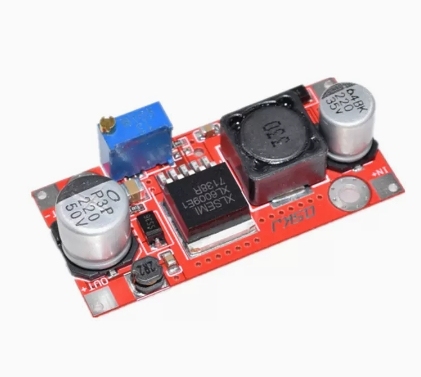

XL6009 DC-DC Adjustable Power Booster Module Super LM2577 High Performance Low Ripple Band Enable
15W power module with enable port
Dimensions: 49 (length) * 23.4 (width) * 11.4 (height) mm (excluding potentiometer)
Module parameters
Module nature: Non isolated boost module (BOOST)
Input voltage: 5-32V
Output voltage: (1) Continuously adjustable (5-50V)
(2) Fixed output 5V
Output current: 2.5A (MAX)
Input current: 4A (MAX)
Output power: 15W natural cooling, 25W with heat sink (MAX) actual power
Maximum output power=input voltage * 4A * conversion efficiency
Output ripple: Input 12V output 24 0.5A ripple 30MV 20M bandwidth
Working temperature: (-40 ℃ to+85 ℃) (If the ambient temperature exceeds 40 ℃, please reduce the power for use or strengthen heat dissipation)
Full load temperature rise: 45 ℃
Working frequency: 400kHz
No load current: 5V to 12V 15mA, 8.4V to 12V 7mA, 12V to 24V 9mA, 12V to 36V 18mA, 24V to 48V 9mA, 24V to 36V 6mA.
Load adjustment rate: ± 0.5%
Voltage adjustment rate: ± 0.5%
Dynamic response speed: 5% 200uS
Enable control port: Yes, default high level 1.4V-VIN (ON)
Short circuit protection: None (please install fuses or protective circuits in the input)
Input protection: None
Installation method: can be fixed with screws (fixing hole 3mm), with 2 fixing holes
Wiring method: Welding, with added pins that can be directly soldered onto the PCB
