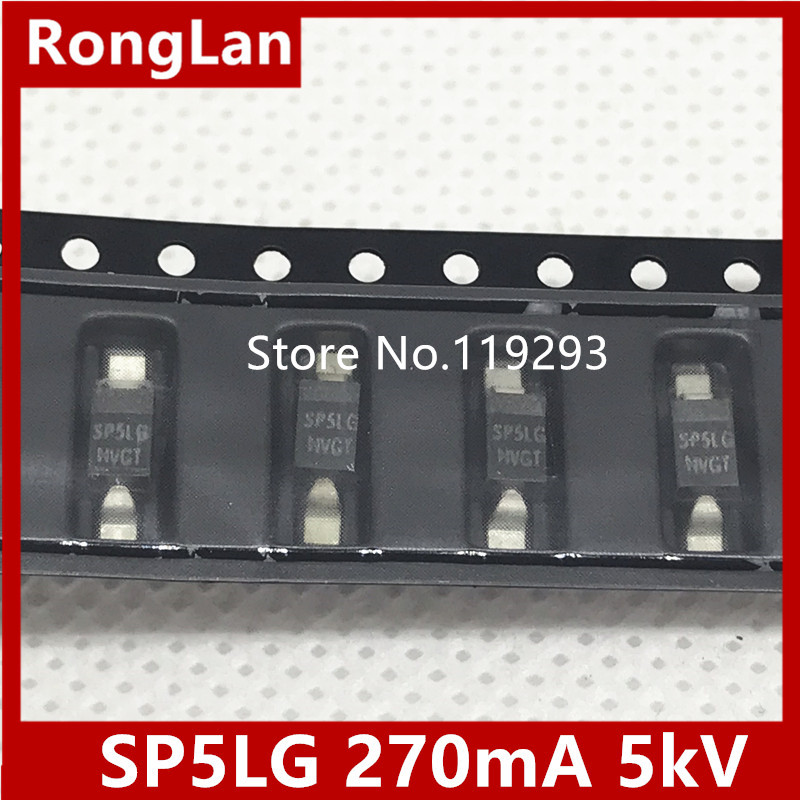

![[electronic] SP5LG high voltage high voltage diode GERT 270mA 5kV high-voltage silicon stack](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1903/products/26/1fe0d31819.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
|
SP5LG parameter table Datasheet: |
|||
|
Model Type |
SP5LG |
Manufacturer Manufacturer |
|
|
Reverse repetitive peak voltage VRRM |
Forward average cuRRent IF(AV) |
270mA |
|
|
Forward non repetitive surge current IFSM |
10A |
Positive peak voltage IF=10 (mA) VFM |
14V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
0.1uA |
Reverse recovery time Trr |
75nS |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
10uA |
PN Junction capacitance CJ |
5.0pF |
|
Working temperature Tj |
-55~150C |
Storage temperature TSTG |
-55~150 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
