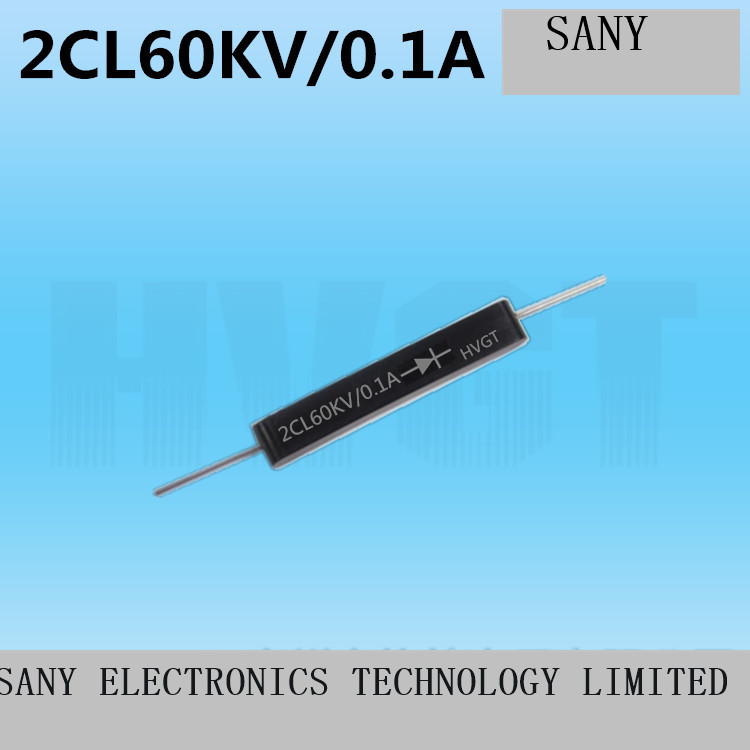

![[HVGT] high pressure silicon heap 2CL60KV/0.1A high pressure silicon heap 60kV 100mA](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1610/products/18/e9616d314c.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
2CL60KV/0.1Aparameter table Datasheet: | |||
Model Type | 2CL60KV/0.1A | Manufacturer Manufacturer | HVGT |
Reverse repetitive peak voltage VRRM | 60KV | Forward average cuRRent IF(AV) | 0.1A |
Forward non repetitive surge current IFSM | 3.0A | Positive peak voltage IF=10 (mA) VFM | 68V |
Reverse direct currentVR=VRRM(kV) IRTa=25 C | 5.0uA | Reverse recovery time Trr | - |
Reverse direct currentVR=VRRM(kV) IRToil=100 C | 50uA | PN Junction capacitance CJ | - |
Working temperature Tj | -40~125C | Storage temperature TSTG | -40~125 C |
Outline dimension Size: Shape (mm Unit:) | |||
| |||
