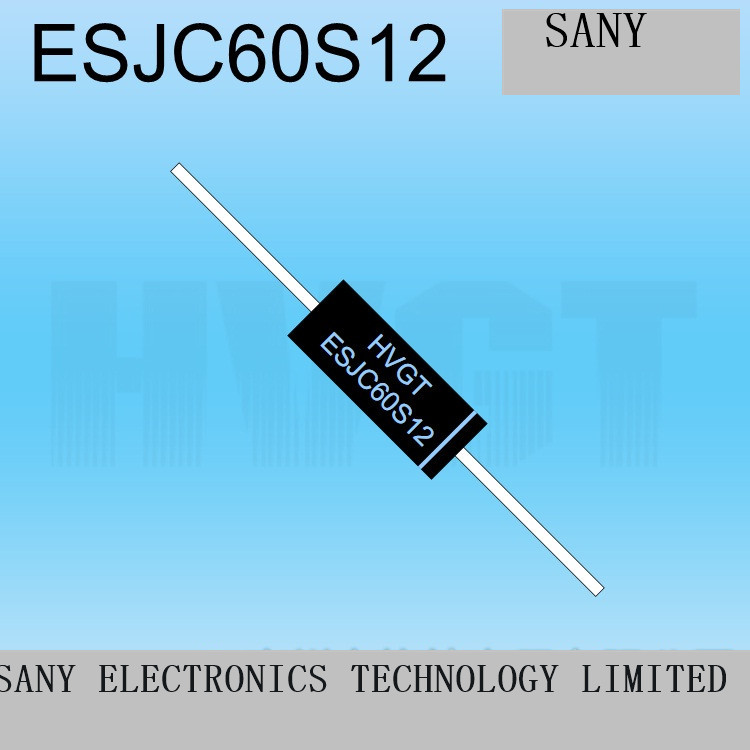

[HVGT] low frequency high voltage diode ESJC60S12 rectifier silicon heap HV600S12 600mA12kV

Device profile

[device name]

High voltage diode

[production brand]

HVGT

[device model]

ESJC60S12

[green note]

RoHS

[device package]

DO-721

[sales note]

Original authentic, brand marketing.

Electrical characteristics

Project

Condition

Symbol

Data

Company

Reverse repetitive peak voltage

VRRM

12

KV

Positive average current

25 degrees C

IF (AV)

600

MA

Positive non repetitive surge current

Sine 1/2 (60Hz) 25 degrees C (8.3mS)

IFSM

30

A

Positive peak voltage

VFIF

VFM

14

V

Reverse direct current

IRVRRM25 ~ C

IR1

5

UA

Reverse direct current

IRVRRM100 degree C

IR2

50

UA

Reverse recovery time

IF=0.5IRI.RI.RR=0.25IR

TRR

-

NS

P/N junction capacitance

At 1 V, MHzR= 0 T andA= 25 degrees C

CJ

15

PF

Operating temperature range

TJ

-40~125

C

Storage temperature range

TSTG

-40~125

C

Guangzhou great Electronics Co. Ltd is established in the HVGT brand sales China enterprise, HVGT has been in China trademark trademark Office trademark registration certificate.

Sales company specializing in the production of series of high-quality plastic high voltage diode, high-voltage silicon stack high voltage rectifier device. Suitable for microwave oven, doubling circuit, medical -, laser power, negative ion and ozone generator, electronic disinfection, electrostatic flocking, electrostatic spraying, high voltage generator etc..

The company has an efficient management team, advanced production -, accurate high pressure testing -, convenient online sales services to provide customers with high quality and high voltage diodes, high voltage silicon stack, high voltage rectifier devices. The accumulated experience and 10 years in the field of high integrity marketing achievement Gutt people get the trust of our customers and support the industry, good atmosphere. Gutt people insist on adhering to the professional and efficient, honest hospitality, business philosophy and various vendors enthusiastic service.
